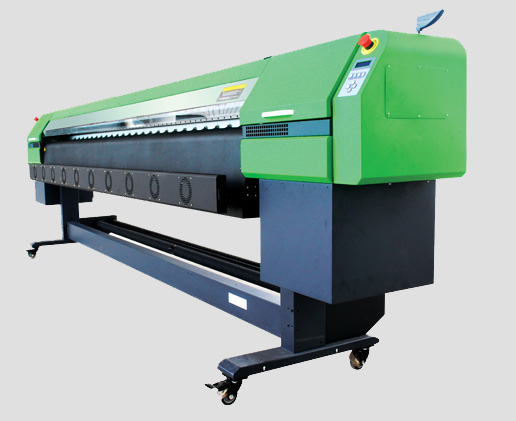

Super Precision UV LED Printer K4320A
Super High Precison
- KM51 / 42pl technology at 360 x 1080dpi; Interface USB 2.0. Printing Width 3.2 mm with high speed and precision
- Humanized design with upturned covers to save operation space. Optional 4 x 2, 4 x 1 Heads
- Automatic cleaning system and Automatic Dry-preventing system and Automatic Media width Sensing satisfy with excellent experience.
- Adjustable pre-heating, Adjustable Post-heating, cooling Fan and Automatic Media Feeding system that satisfy with stability.
- Professional RIP software (PhotoPRINT or MainTOP optional) for vivid color.
- Optional individual single color cleaning Kit and Middle Heater.
- Optional Automatic Media Take-up system and Flush cleaning Print Head Kit for best convenience.
Technical Specifications
| Item | Specifications | |
| K4320-A | ||
| Printhead | KM512/42 PL 4 X 1 heads (or 4 x 2) |
|
| Maximum Print width | 3200 mm (126 in) | |
| Maximum Media Width | 3200 mm (126 in) | |
| Precision | 180 x 720 dpi; 180 x 1080 dpi; 240 x 720 dpi; 240 x 1080 dpi; 360 x 720 dpi; 360 x 1080 dpi; |
|
| Print Speed | Draft | 49.37m/hr (180x720dpi, 2pass, 4 x 1 heads); 98.74m/hr (180x720dpi, 2pass, 4 x 2 heads); |
| Standard | 39.88m/hr (240x720dpi, 2pass, 4 x 1 heads); 79.76m/hr (240X720dpi, 2pass, 4 x 2 heads); |
|
| High Quality | 19.20m/hr (360x720dpi, 3pass, 4 x 1 heads); 38.40m/hr (360X1080dpi, 3pass, 4 x 2 heads); |
|
| Ink | Type | Solvent Ink |
| Color | Cyan, Magenta, Yellow, Black | |
| Capacity | 1000ml Per Main Tank of each color | |
| Ink supply System | Low ink detector, Auto or manual ink supply system | |
| Media | Types | Vinyl, Window Film, Polyester, Flex etc |
| Feeding | Roll media or sheet media | |
| Auto Media Feeding & Take-up System | Auto Media Feeding System (Equipped) | |
| Auto Media take-up (Optional) | ||
| Printhead Cleaning System | Automatic Cleaning System | |
| Automatic Dry-preventing system | ||
| Pre-heater & Dry System | Adjustable Pre-heating, Adjustable Post-heating and Cooling Fan | |
| Clamp | Equipped | |
| Print Interface | USB 2.0 | |
| Flatform Height | 2mm to 4mm above Media Adjustable | |
| RIP Software | MainTOP 5 or PhotoPRINT 6 | |
| Input Power | 100 ~ 240V, 50/60 Hz | |
| Machine Dimension | L4540mm x W720mm x H1300mm | |
| Package Dimension | L4660mm x W720mm x H1100mm | |
| Weight | Net Weight | 350 Kg |
| Gross Weight | 500 Kg | |
| Above specifications are subject to change without prior notice. | ||
