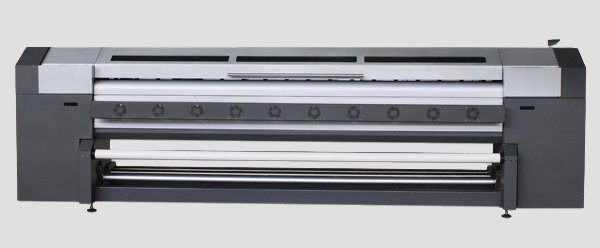

Super Precision UV LED Printer K6320A-P6320A
K6320-A
- New printhead for KM512/42pl/35pl, 4pcs or 8 pcs (optional)
- Adjustable Pre-heating and adjustable Post-heating and cooling fan that satisfy with stable image
- Automatic Heads cleaning system & Automatic maintenance station satisfy with excellent experience.
- Automatic media width sensing for best convenience.
- Automatic media feeding & take-up system.
- Professional RPIsoftware photoPRIN/MainTOP for vivid colors
- Optional Vinyl Feeding Kit for feeding the vinyl media roll.
P6320-A
- Spectra Polaris PQ512/15pl or 35pl Technology, Spectra heads made of steel material with 18k golden coating, so endurance ensure a long use life. PQ512/15pl at 15pl dot size, with frequency 30-50K make the trio speed compared to current products. The max resolution reach 720 x 1000 dpi.
- Optional Mid Heating, Individual temperature control. AVoid any influence by nature.
- Automatic Cleaning system, Automatic Dry-preventing system & Automatic media width Sensing satisfy with excellent experience.
Technical Specifications
| Item | Specifications | ||
| K6320 | P6320 | ||
| Printhead | KM512/35pl/42pl 4 X 1 heads (or 4 x 2) |
PQ512/15pl or 35pl 4 x 1 heads |
|
| Maximum Print width | 3200 mm (126 in) | ||
| Maximum Media Width | 3200 mm (126 in) | ||
| Precision | 180 x 720 dpi; 180 x 1080 dpi; 240 x 720 dpi; 240 x 1080 dpi; 360 x 720 dpi; 360 x 1080 dpi; |
180 x 720 dpi; 180 x 1080 dpi; 240 x 720 dpi; 240 x 1080 dpi; 360 x 720 dpi; 360 x 1080 dpi; |
|
| Print Speed | Draft | 49.37m/hr (180x720dpi, 2pass, 4 x 1 heads); 98.74.37m/hr (180x720dpi, 2pass, 4 x 2 heads); |
64.5m/hr (360x800dpi, 4pass, 4 x 1 heads); |
| Standard | 39.88m/hr (240x720dpi, 2pass, 4 x 1 heads); 79.76m/hr (24x720dpi, 2pass, 4 x 2 heads); |
74.6m/hr (720x600dpi, 3pass, 4 x 1 heads); | |
| High Quality | 19.20m/hr (360x720dpi, 3pass, 4 x 1 heads); 38.40m/hr (360x1080dpi, 3pass, 4 x 2 heads); |
56.2m/hr (720x800dpi, 4pass, 4 x 1 heads); | |
| Ink | Type | Solvent Ink | |
| Color | Cyan, Magenta, Yellow, Black | ||
| Capacity | 1000ml Per Main Tank of each color | ||
| Ink supply System | Low ink detector, Auto or manual ink supply system | ||
| Media | Types | Vinyl, Window Film, Polyster, Flex etc | |
| Feeding | Roll media or sheet media | ||
| Auto Media Feeding & Take-up System | Auto Media Feeding System (Equipped) | ||
| Auto Media take-up (Optional) | |||
| Printhead Cleaning System | Automatic Cleaning System | ||
| Automatic Dry-preventing system | |||
| Pre-heater & Dry System | Adjustable Pre-heating, Adjustable Post-heating adn Cooling Fan | ||
| Clamp | Equipped | ||
| Print Interface | USB 2.0 | ||
| Flatform Height | 2mm to 4mm above Media Adjustable | ||
| RIP Software | MainTOP 5 or PhotoPRINT 6 | ||
| Input Power | 100 ~ 240V, 50/60 Hz | ||
| Machine Dimension | L4640mm x W720mm x H1350mm | L4640mm x W720mm x H1350mm | |
| Package Dimension | L4700mm x W900mm x H1730mm | L4700mm x W900mm x H1730mm | |
| Weight | Net Weight | 550 Kg | 550 Kg |
| Gross Weight | 750 Kg | 750 Kg | |
| Above specifications are subject to change without prior notice. | |||
